Remarks: 1) Price Term: FOB NINGBO 2) Payment: T/T (30% for deposit, 70% before delivery) 3) Load time: 30 working days at sight the deposit. 4) After sale service: Spare parts guarantee for one year in machine arrival.
CW-16 HIGH SPEED PAPER CUP MAKING MACHINE
Simple Setting Explanation:
The CW-16 high-speed paper cup machine is a multi-station paper cup forming machine, which is currently the mainstream machine on the market. The roll mouth and rolling bottom adopt a dual disc separation process, and the roll mouth adopts two processes to form, making the cup mouth more round. Especially for thick paper, a single disc machine cannot achieve a smooth and even roll mouth. This model does not have this problem. The whole machine adopts frequency conversion speed regulation, automatic oil injection, servo bottom feeding, ultrasonic welding, and high production speed, Up to 150 per minute, this machine belongs to the mid to high end model.
Product Details
| Model | CW-16 high speed paper cup machine |
| Paper thickness | 150-350 gsm |
| Material | Single/double PE coated paper |

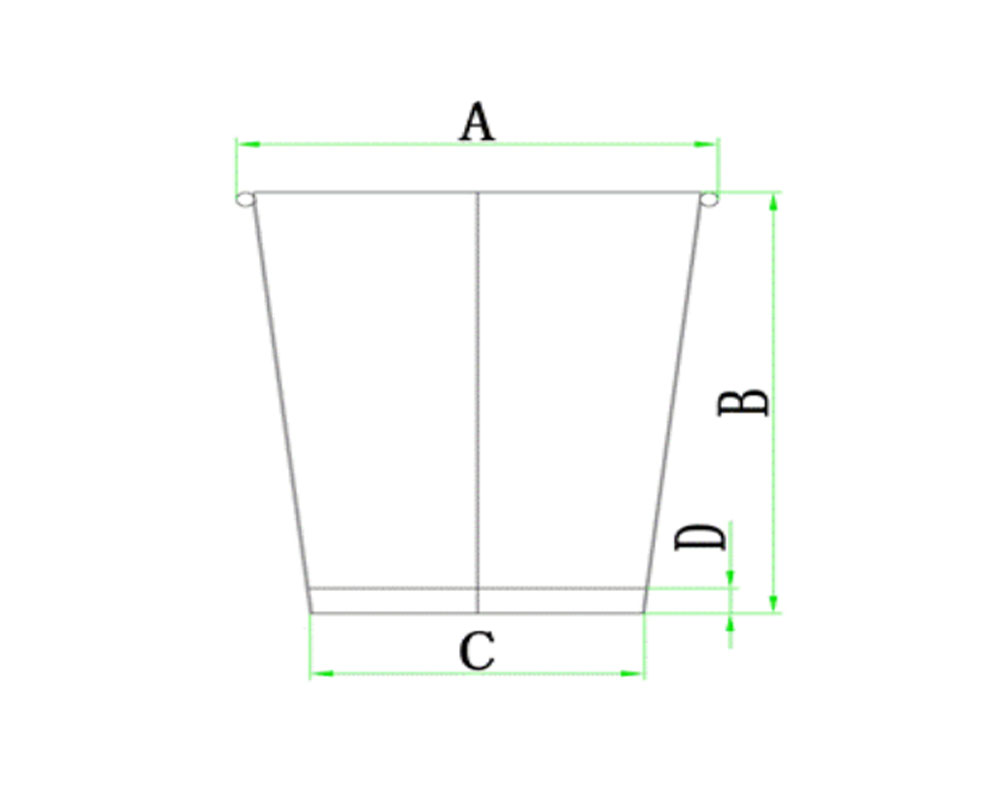

| Paper cup specific | (A)φ60-95mm (B)50-135mm (C)40-80mm (D)5-12mm |
| Speed | 130-150 pcs/min |
| Air source specifications | 0.5-0.8MPa, 0.5 cubic/min |
| Voltage | 380V 50HZ Three phase |
| Power | 18 kw |
| Machine size | 2700*1300*1900 mm |
| Weight | 3300 Kgs |

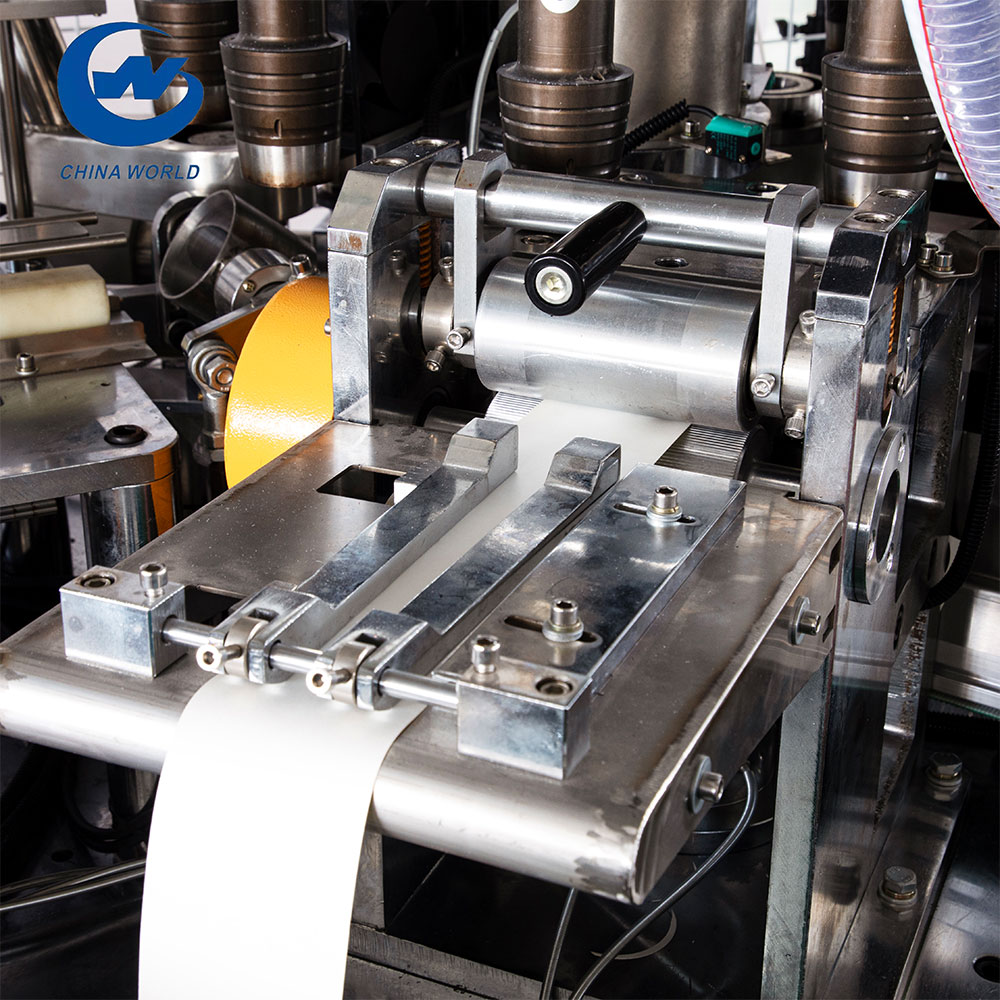

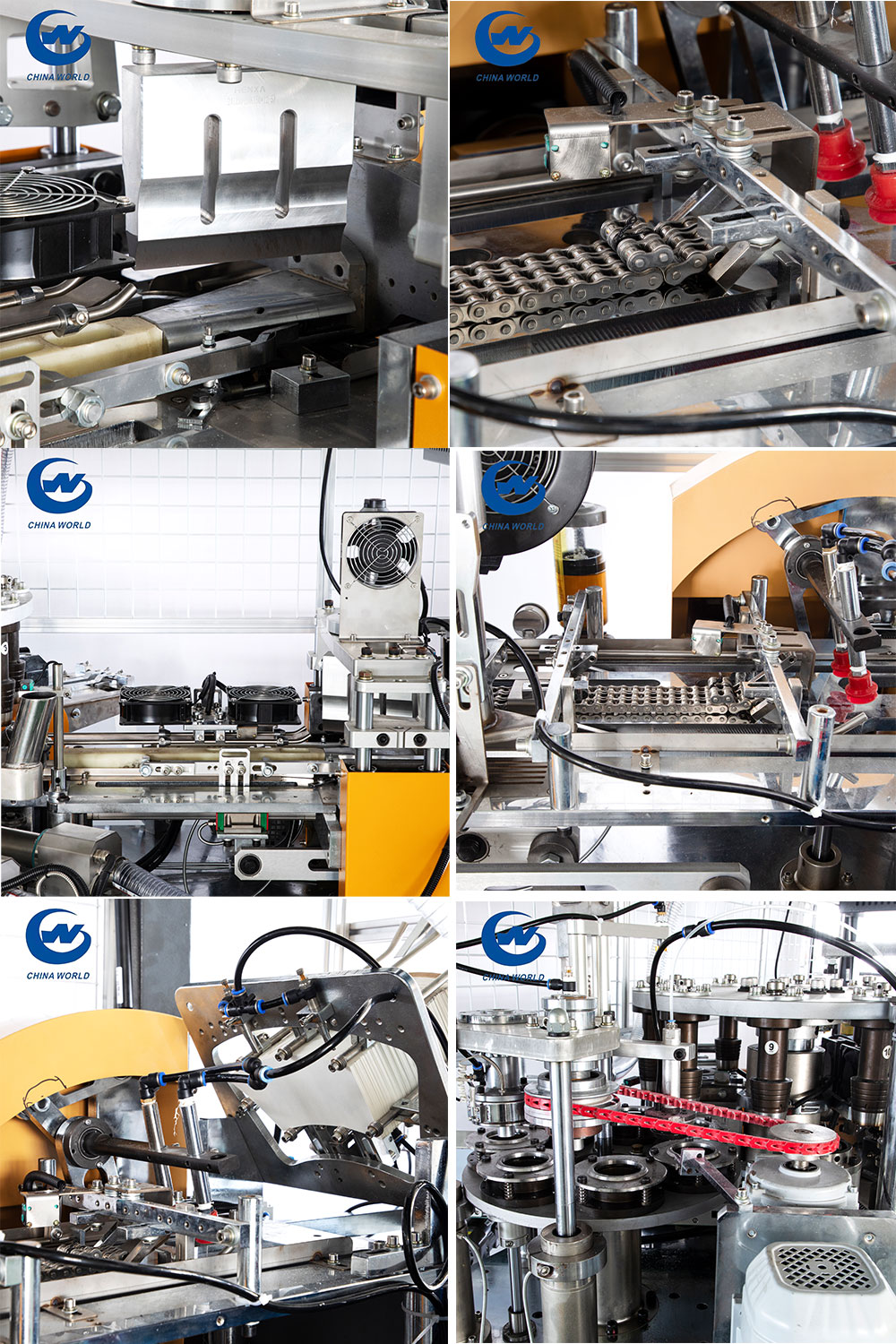

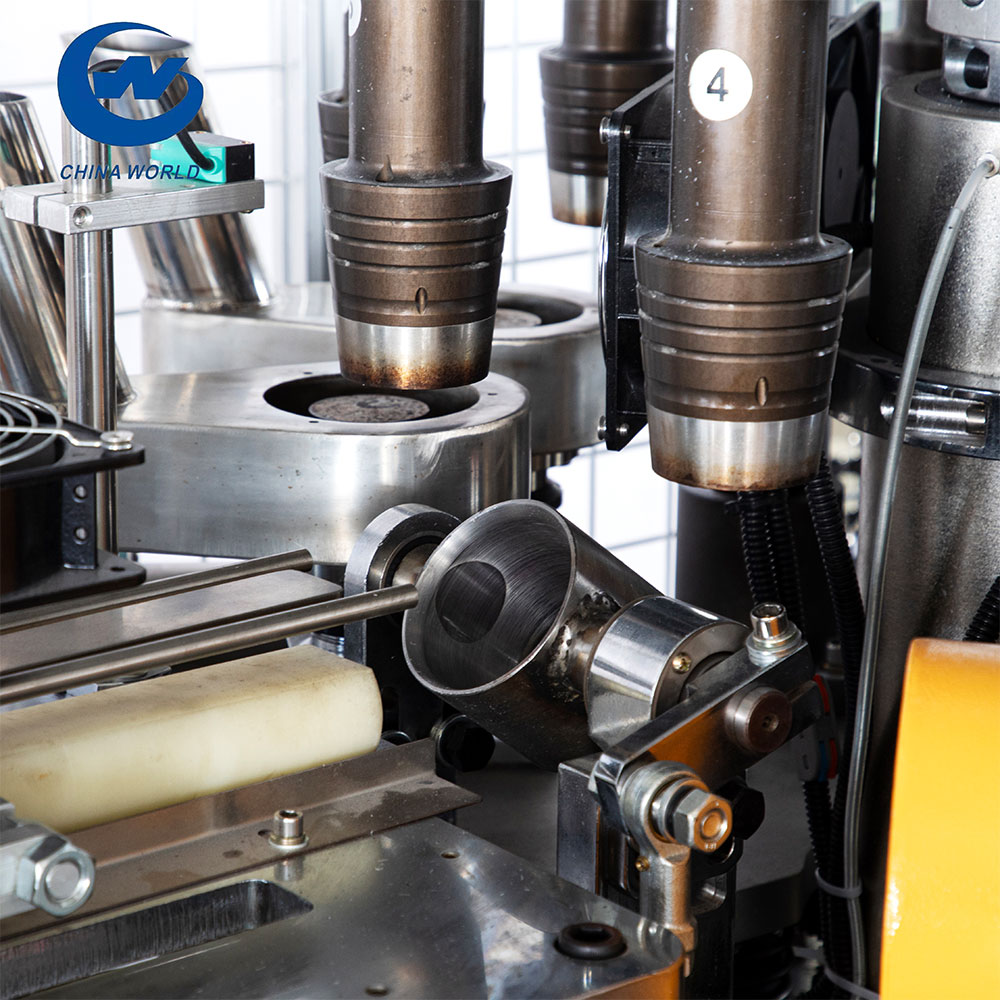

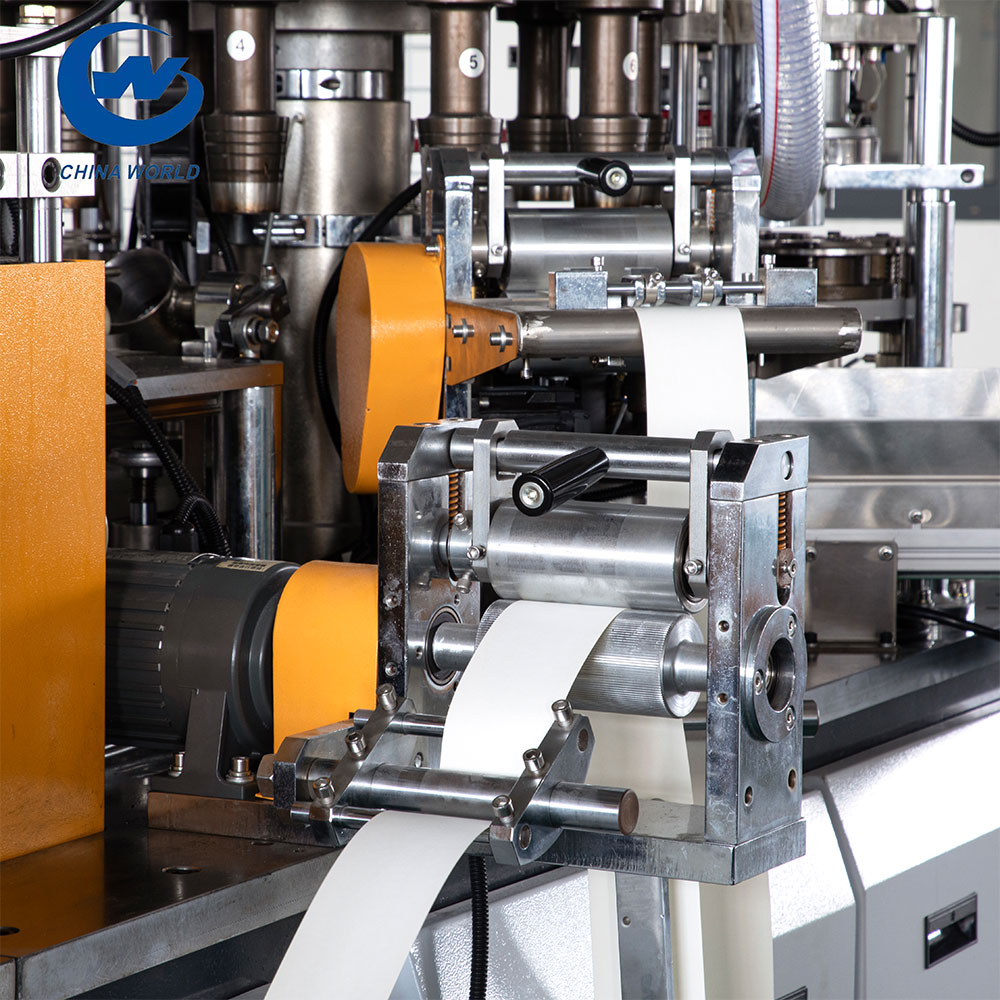

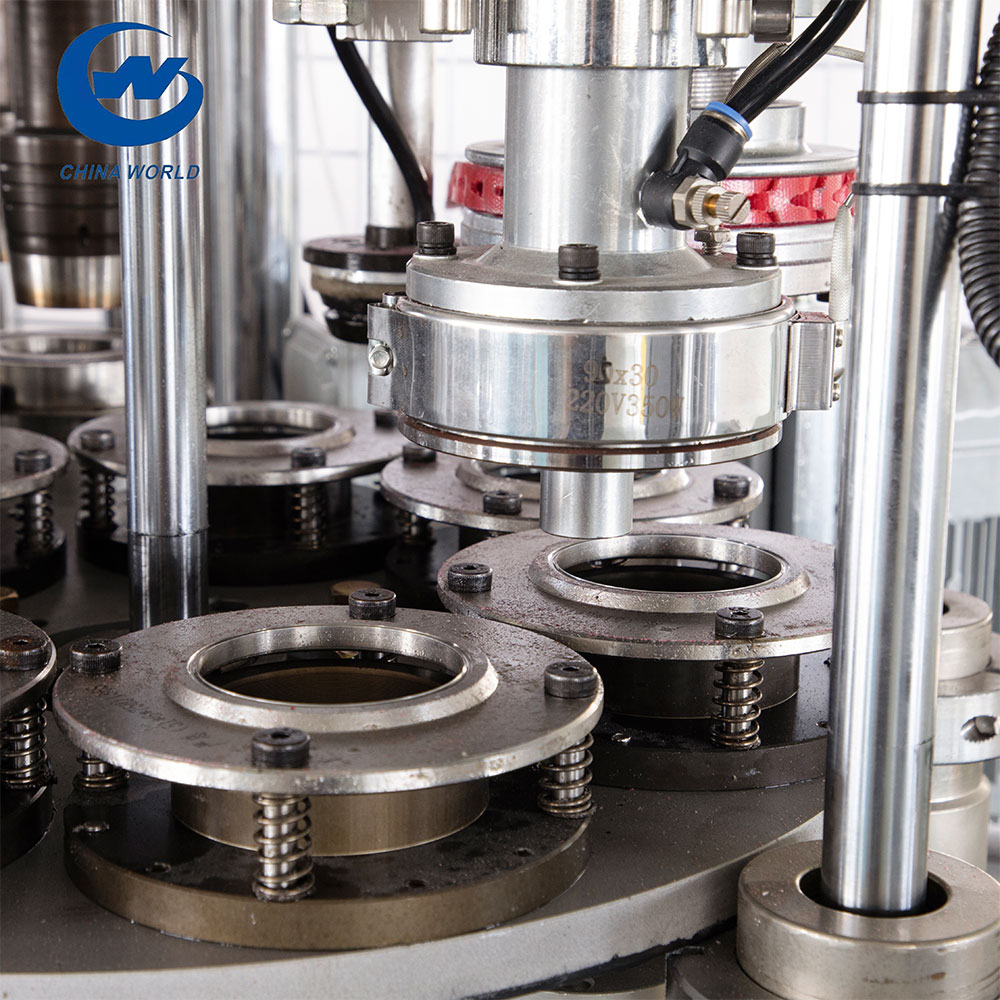

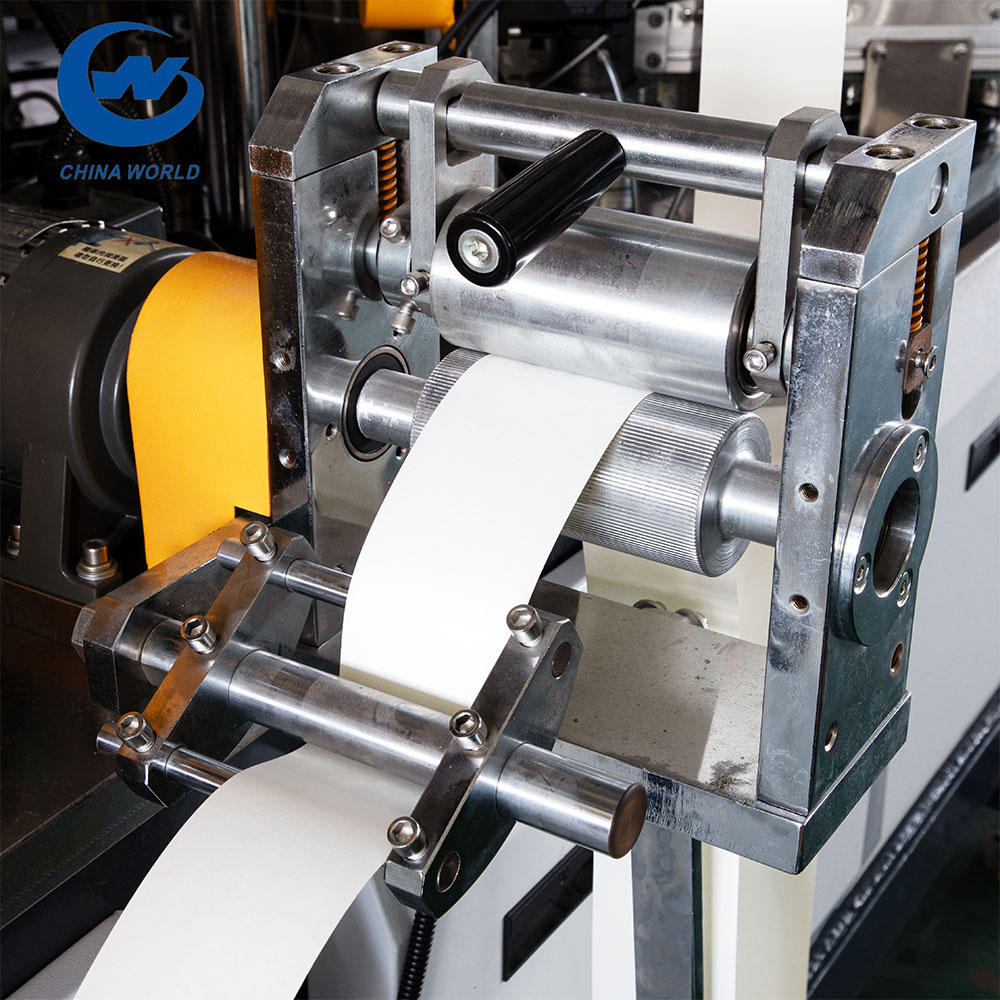

Machine details
Product Details Customization:Available Warranty:1 Year Applicable Objects:Beverage
Remarks: 1) Price Term: FOB NINGBO 2) Payment: T/T (30% for deposit, 70% before delivery) 3) Load time: 30 working days at sight the deposit. 4) After sale service: Spare parts guarantee for one year in machine arrival.
1) Price Term: FOB NINGBO 2) Payment: T/T (30% for deposit, 70% before delivery) 3) Load time: 30 working days at sight the deposit. 4) After sale service: Spare parts guarantee for one year in machine arrival.
Remarks: 1) Price Term: FOB NINGBO 2) Payment: T/T (30% for deposit, 70% before delivery) 3) Load time: 30 working days at sight the deposit. 4) After sale service: Spare parts guarantee for one year in machine arrival.
1) Price Term: FOB NINGBO 2) Payment: T/T (30% for deposit, 70% before delivery) 3) Load time: 30 working days at sight the deposit. 4) After sale service: Spare parts guarantee for one year in machine arrival.
Carton forming machine is an ideal equipment for the production of carton boxes, such as hamburgers, french fries boxes, fried chicken boxes, children's lunch boxes, take-out boxes, triangular pizza boxes, etc. The structure is sturdy, good quality, low noise, and high efficiency. It has a paper feeding unit, an adjustment unit, a water unit, a forming unit, a finished product collection unit and a counting unit
Remarks: 1) Price Term: FOB NINGBO 2) Payment: T/T (30% for deposit, 70% before delivery) 3) Load time: 30 working days at sight the deposit. 4) After sale service: Spare parts guarantee for one year in machine arrival.
The reliable products have won wide acceptance with first-class quality and perfect after-sales service at home and abroad.
